SPECIFICATIONS

Application: Cutting

Brand Name: CNCEST

Color: Yellow/green/red/blue

Crimp Form: Hexagonal Surrounding Crimp

Crimping Force: 120KN/26455lbs

DIY Supplies: Metalworking

Features: Multifunctional

Handle Style: Straight

High-concerned chemical: None

Material: Carbon Steel,CR45 Steel, Rubber

Model: YQK-300

Model Number: YQK-300

Mounting Type: Freestanding

Operation Type: Manual

Origin: Mainland China

Pressure: 60MPA

Process: Heat Treatment, Blackening Treatment, Plastic Spraying

Product Type: Hydraulic Crimper

Type: Multifunctional Plier

is_customized: No

Description

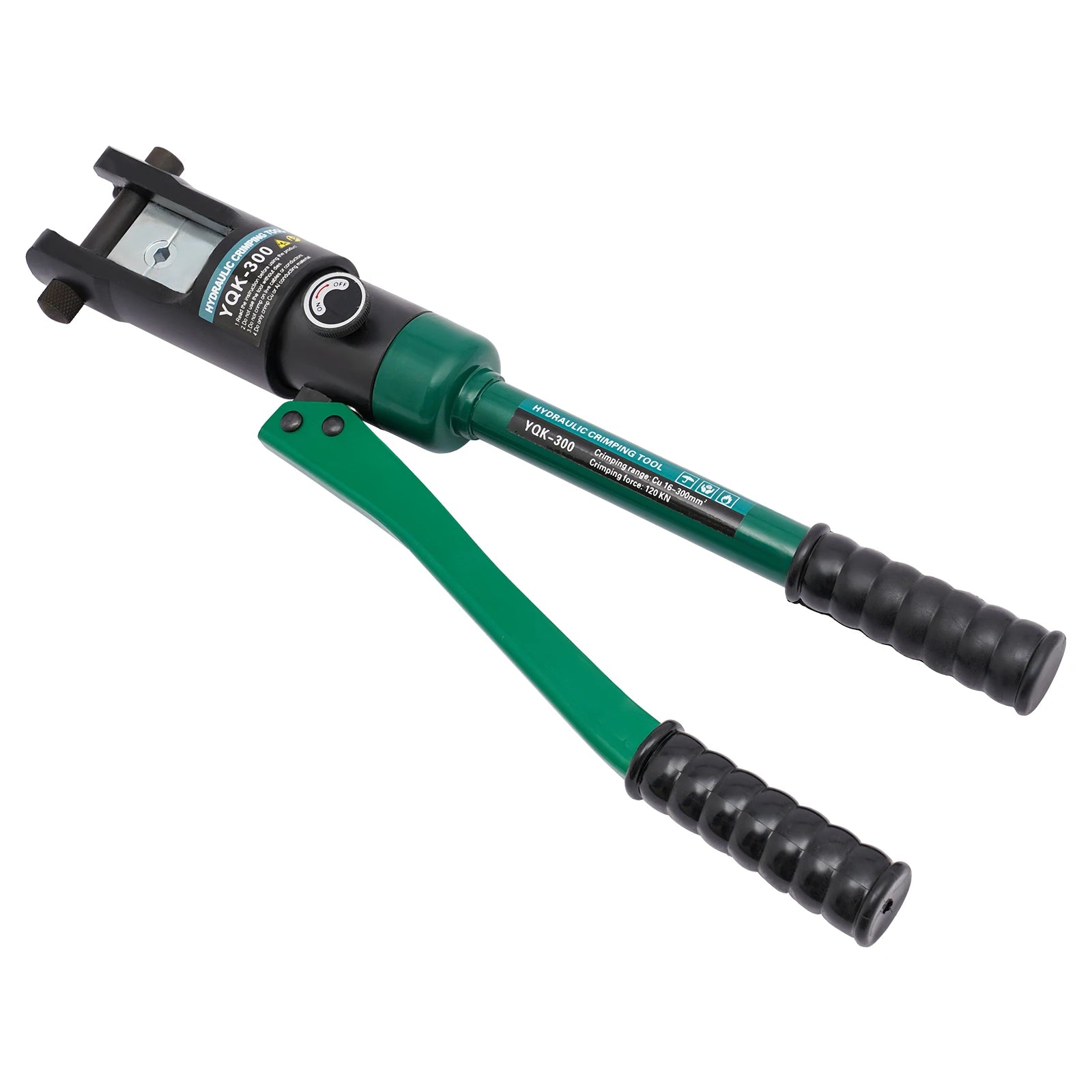

You can easily crimp wires and butt connectors when you have a professional hydraulic manual crimper. It is simpler and more efficient to operate than the traditional crimper. It is constructed with high quality that is very sturdy and durable. In addition, multiple sizes of molds are available to meet your different crimping needs. So it will be a good helper for your work.

Key Features

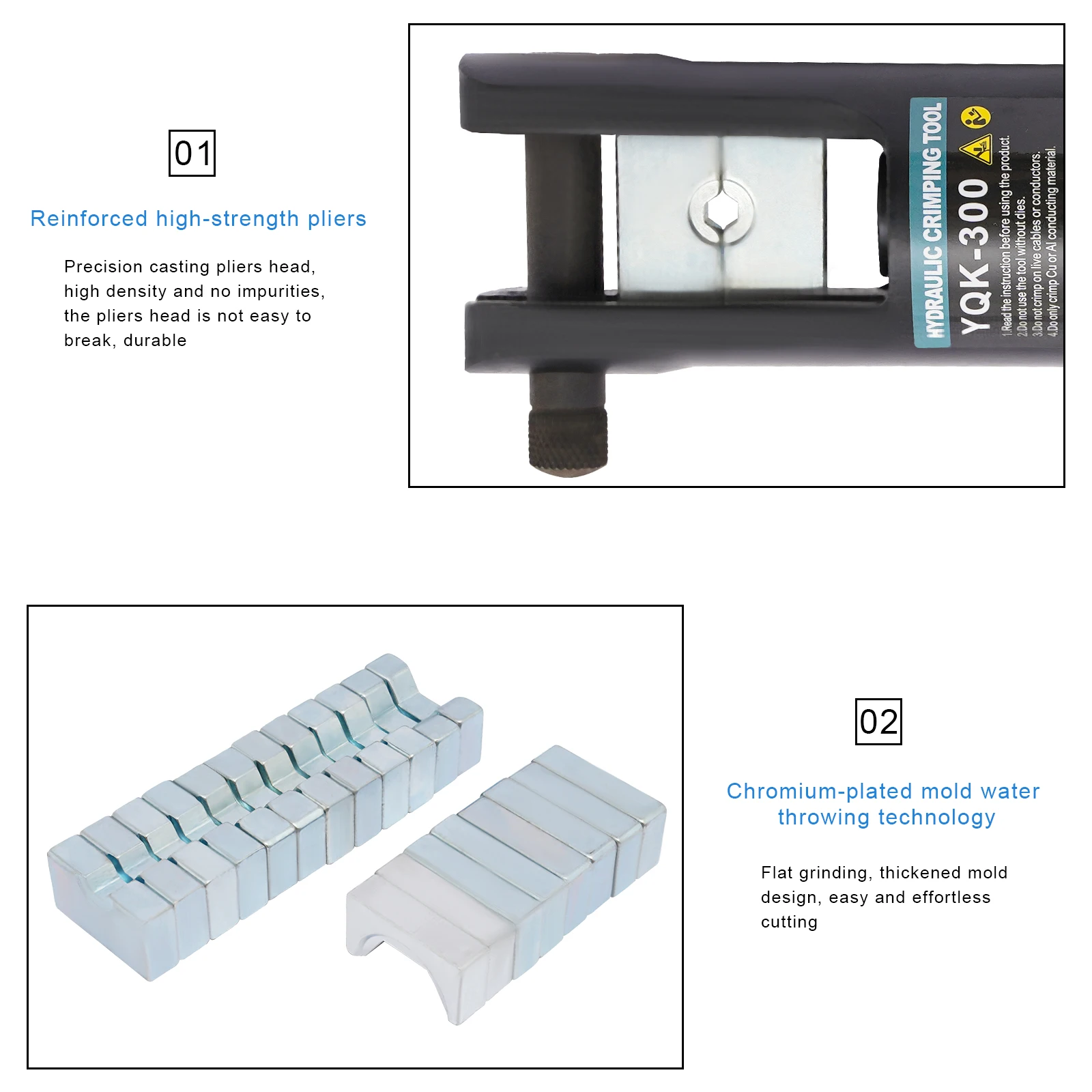

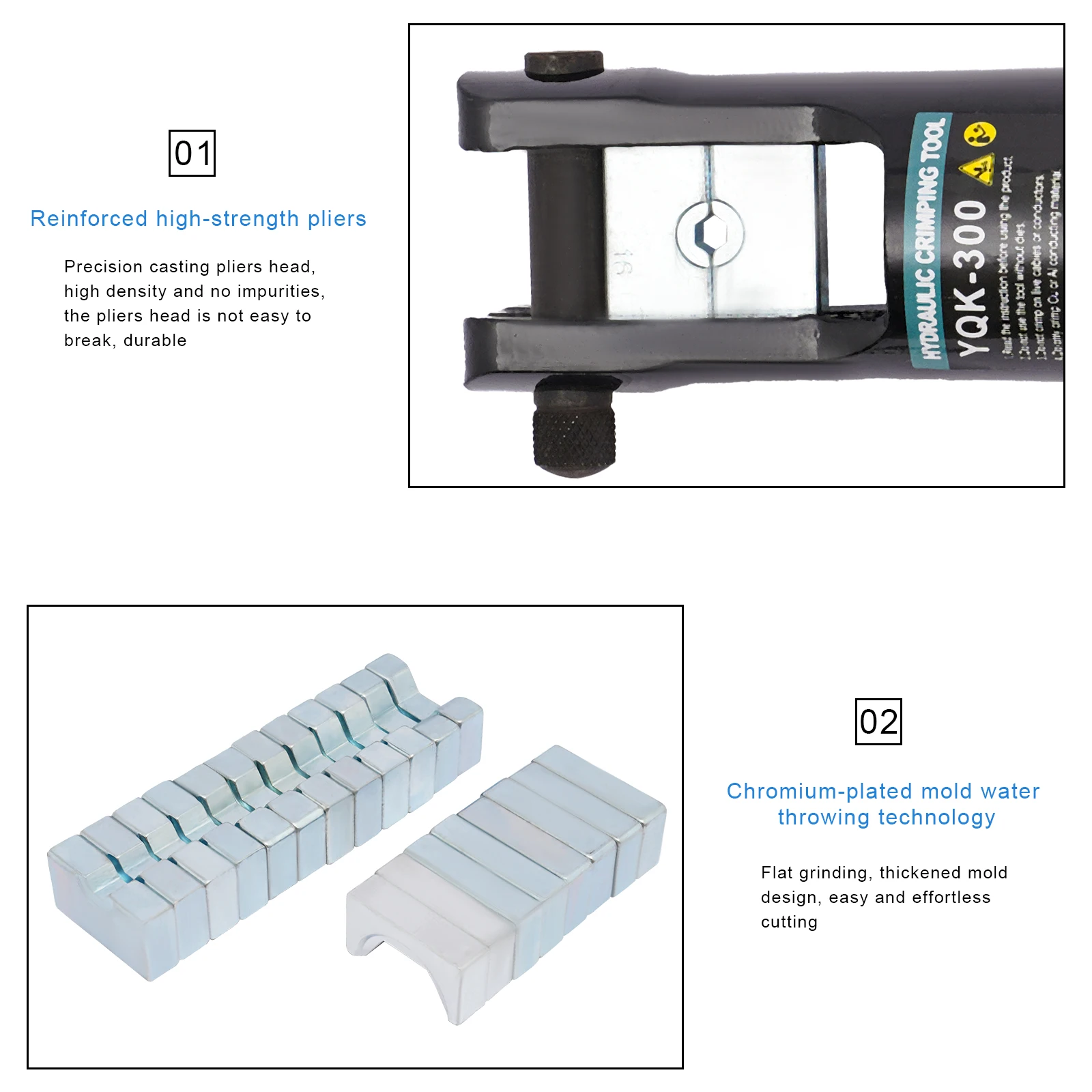

Sturdy and Durable: The item is made of high-quality CR45 steel with a heat treatment, blackening treatment, and plastic spraying treatment, making it resistant to wear and rust. So it can keep practical and beautiful without frequent replacement.

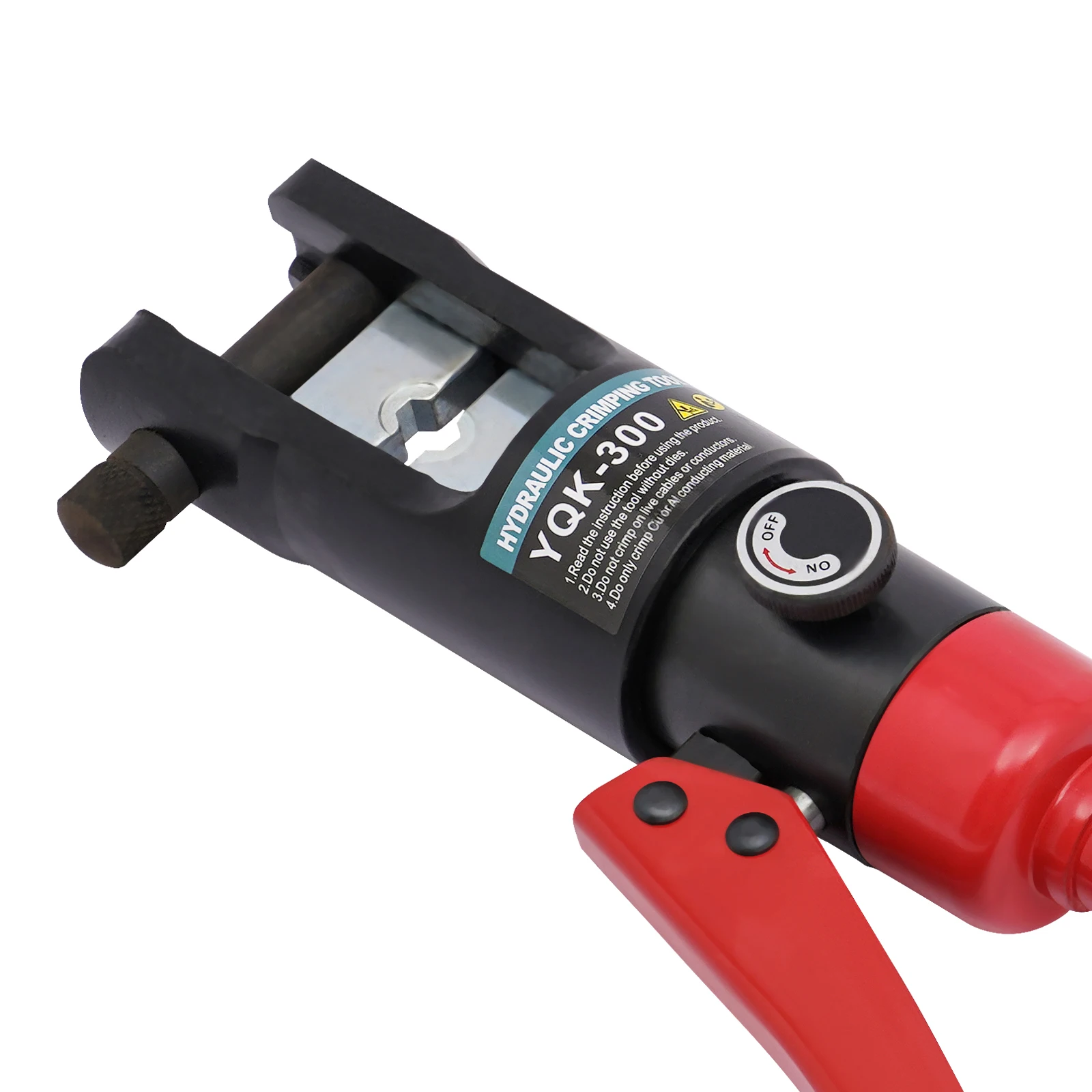

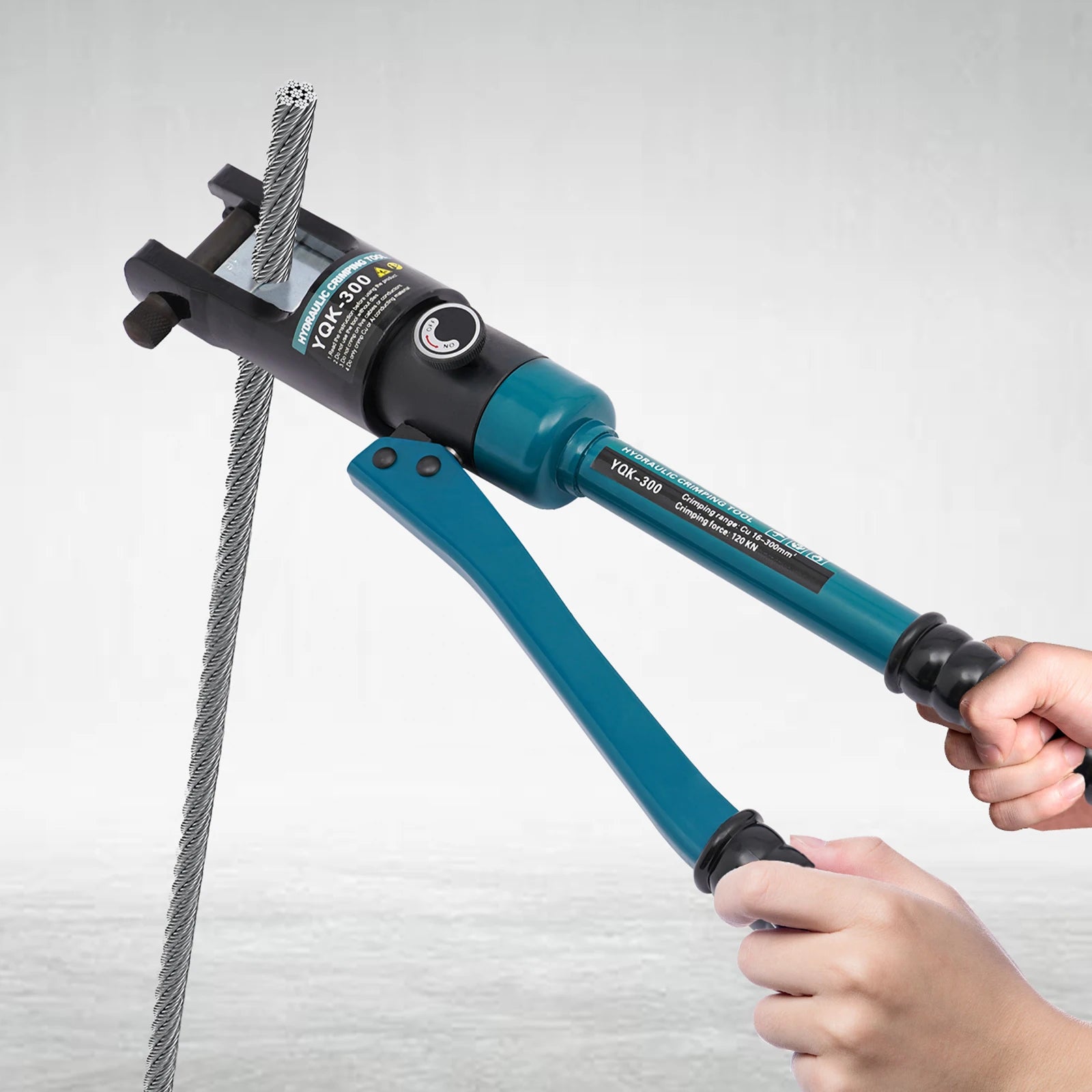

Powerful Function: This crimper has 120KN of crimping force and the pincer head sectioncan be rotated 180°. So when you use it, the jaws will firmly clamp and crimp the item to keep it fixed without falling off so that the crimped wire ends will be very sturdy.

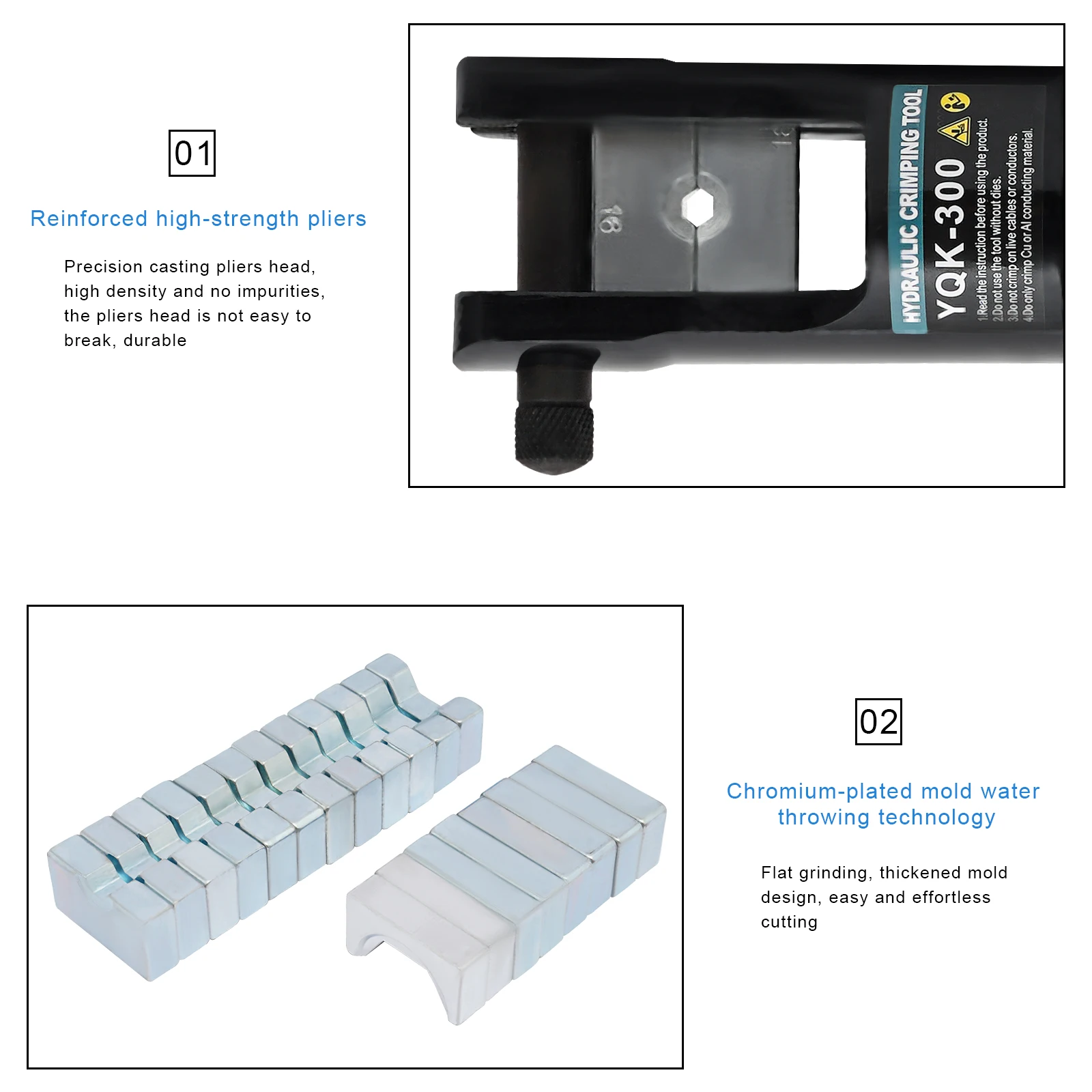

Multi-size Dies: This hydraulic crimper has 11 sets of different sizes of dies. You can choose the right crimping dies for different wire ends to meet different usage requirements. In addition, the model number is engraved on the die, which makes it easy for you to find the right die.

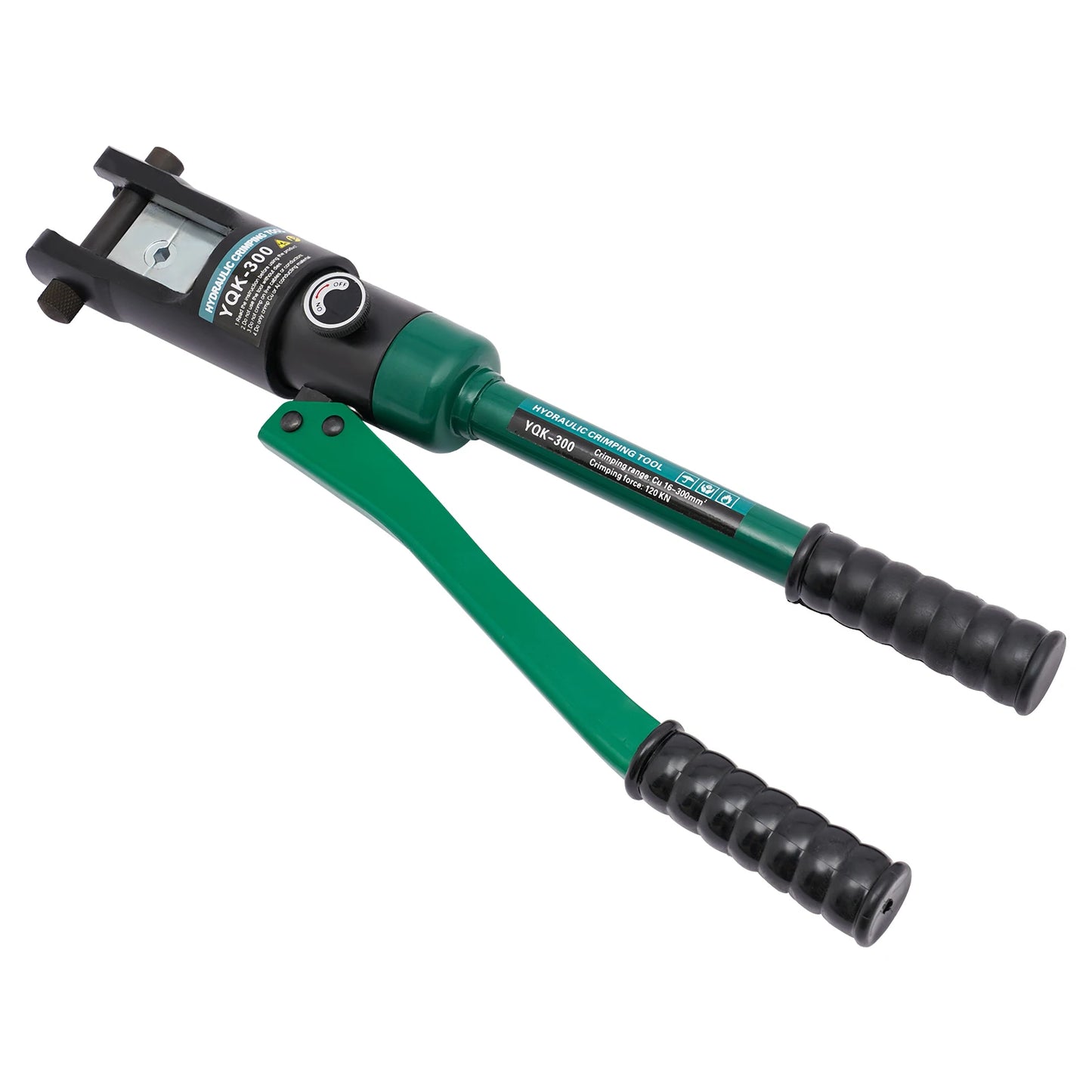

Good Sealing: The sealing ring as well as the anti-leakage plunger can seal the cylinder well and reduce the occurrence of oil leakage, and at the same time, it is equipped with 4 seals that are easy for you to replace.

Easy to Carry and Store: We have customized a one-piece storage case for this tool to facilitate you to carry and store. Keeping all the tools in the case can avoid losing, too. It also prevents damage to the crimper during transportation.

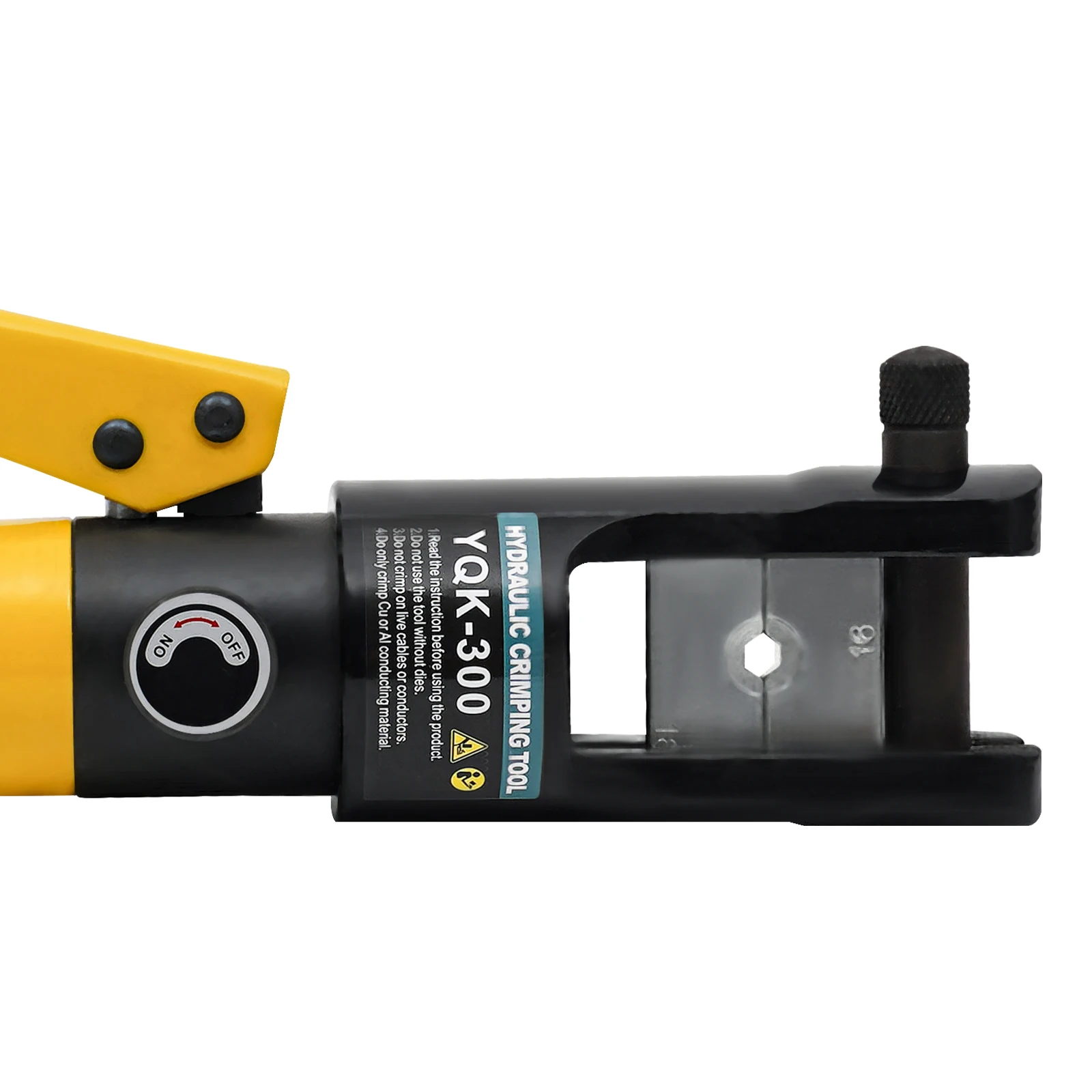

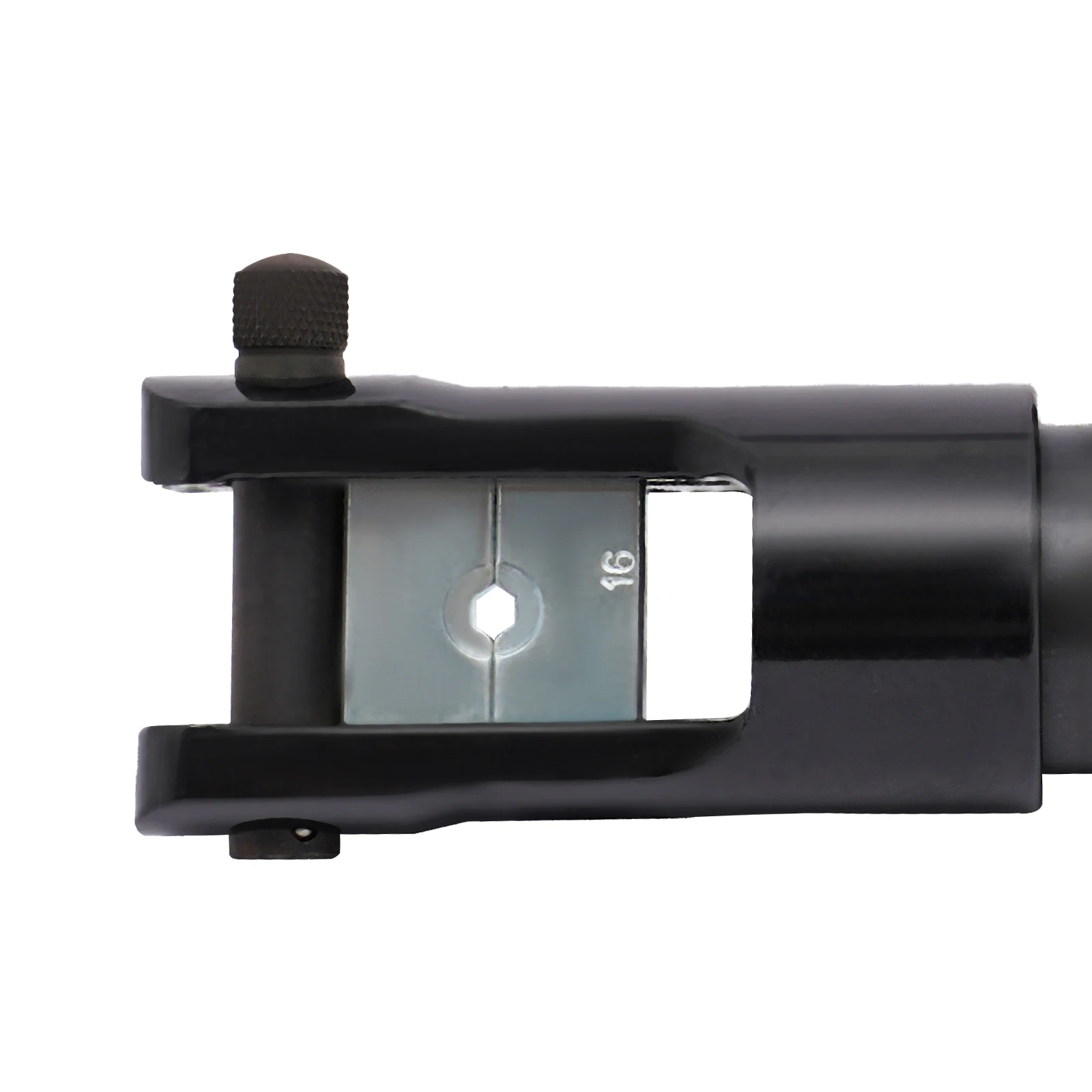

Easy to Replace: The jaw dies of this hydraulic crimper can be easily removed and replaced with another one that is convenient to use. What’s more, the fixed pin makes changing molds easier!

Ideal Gift: With its practicality and cost-effectiveness, you can give it as a Christmas, Thanksgiving or housewarming gift to your worker friends or hobbyist DIY friends.

Customer Service: We aim to provide quality products and services. If you have problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

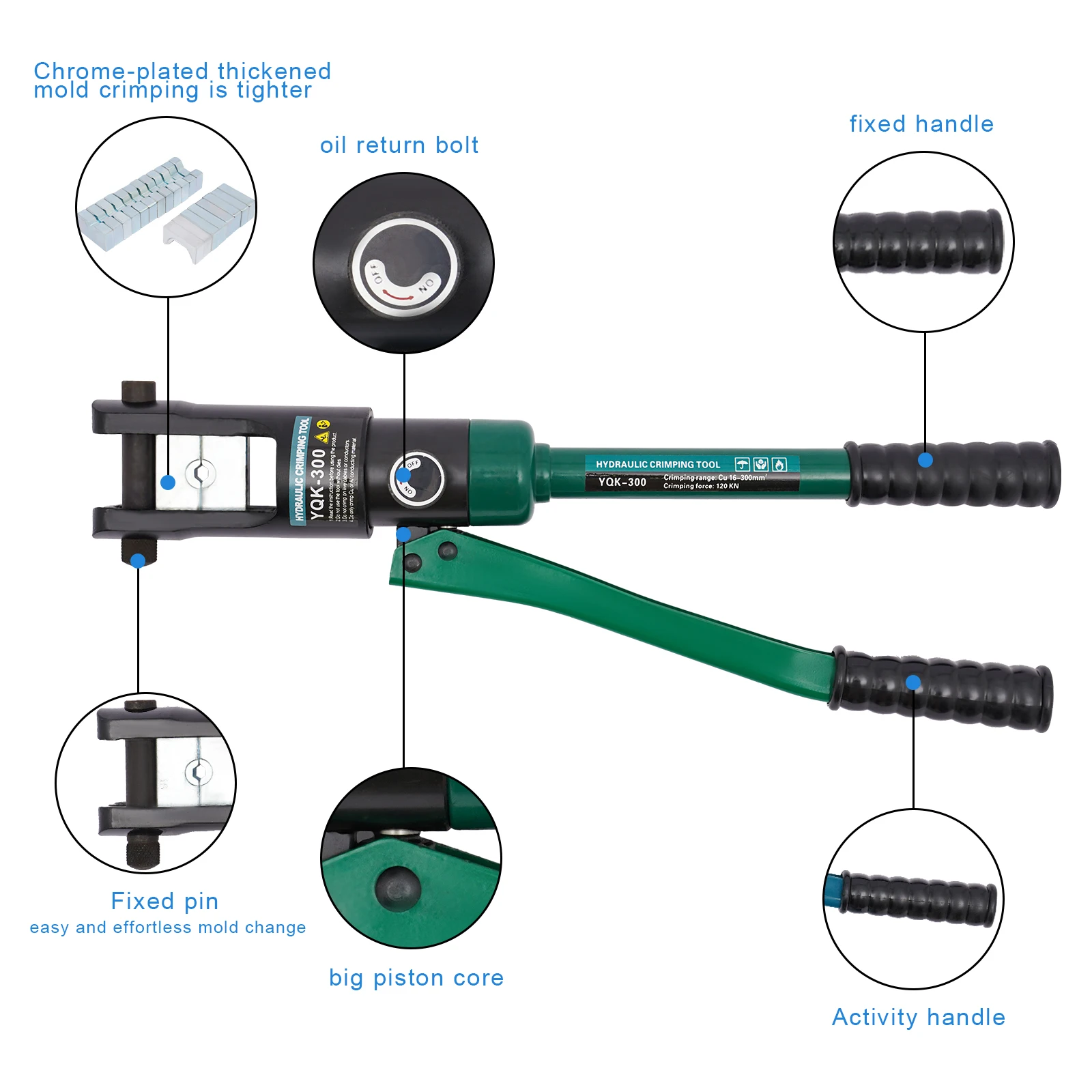

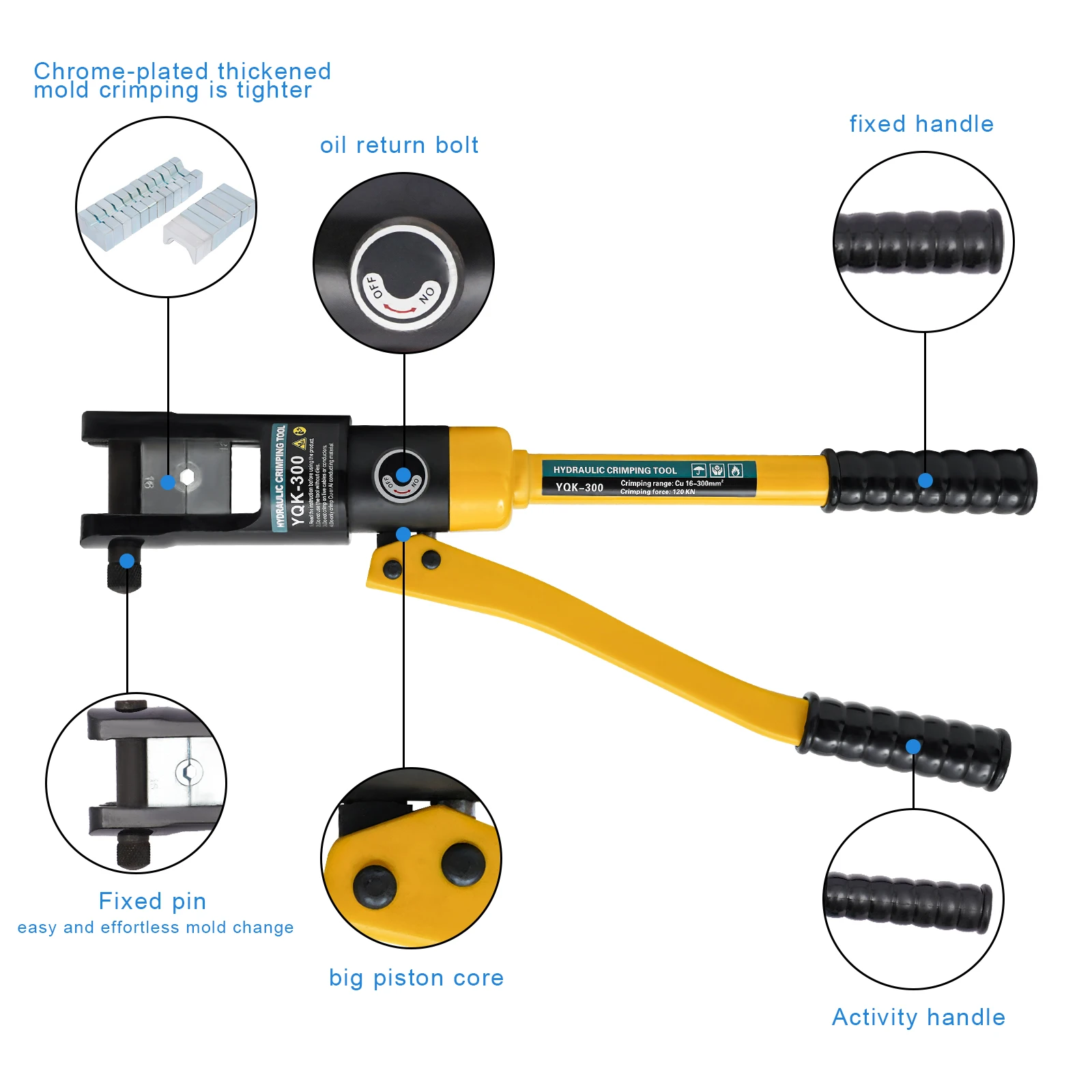

Details

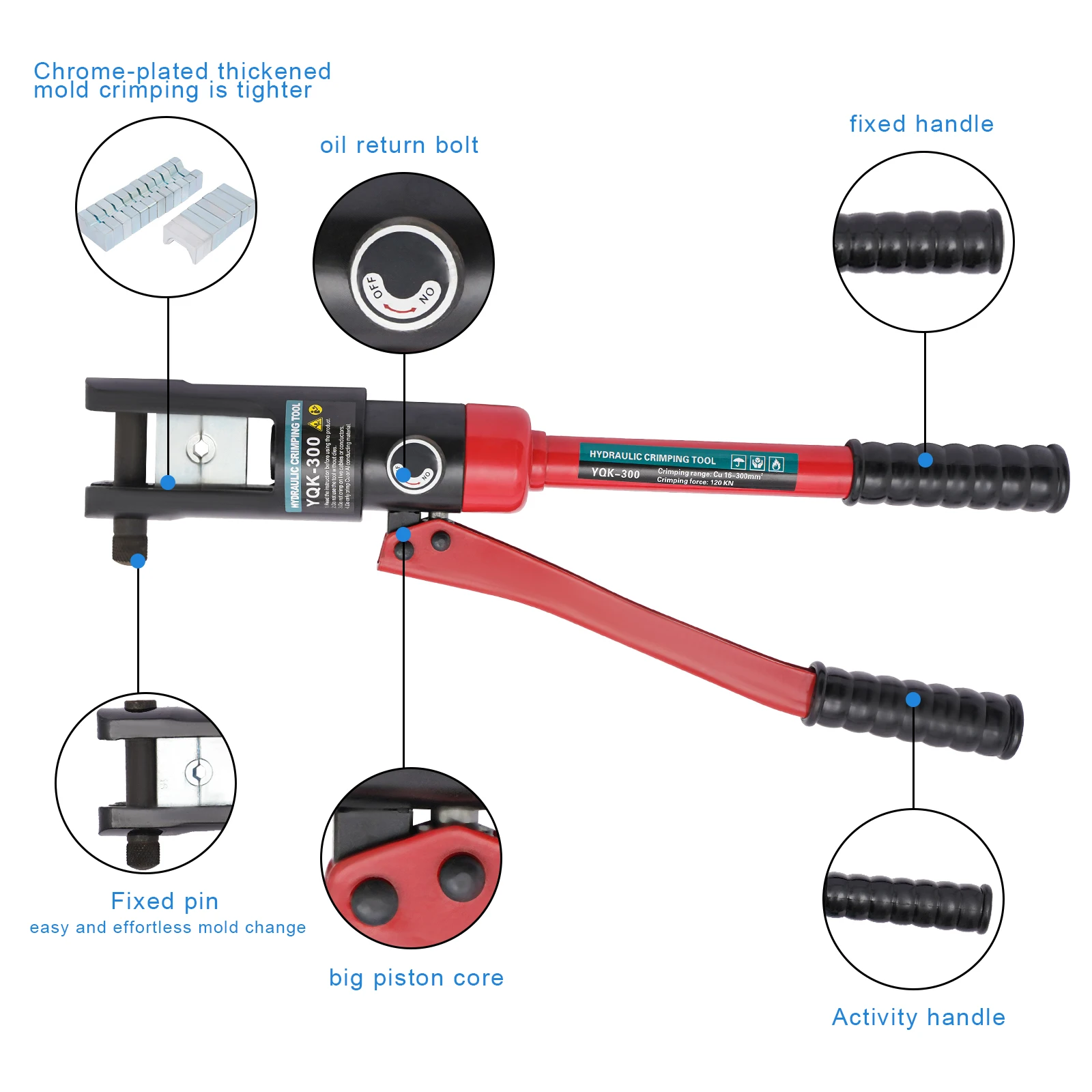

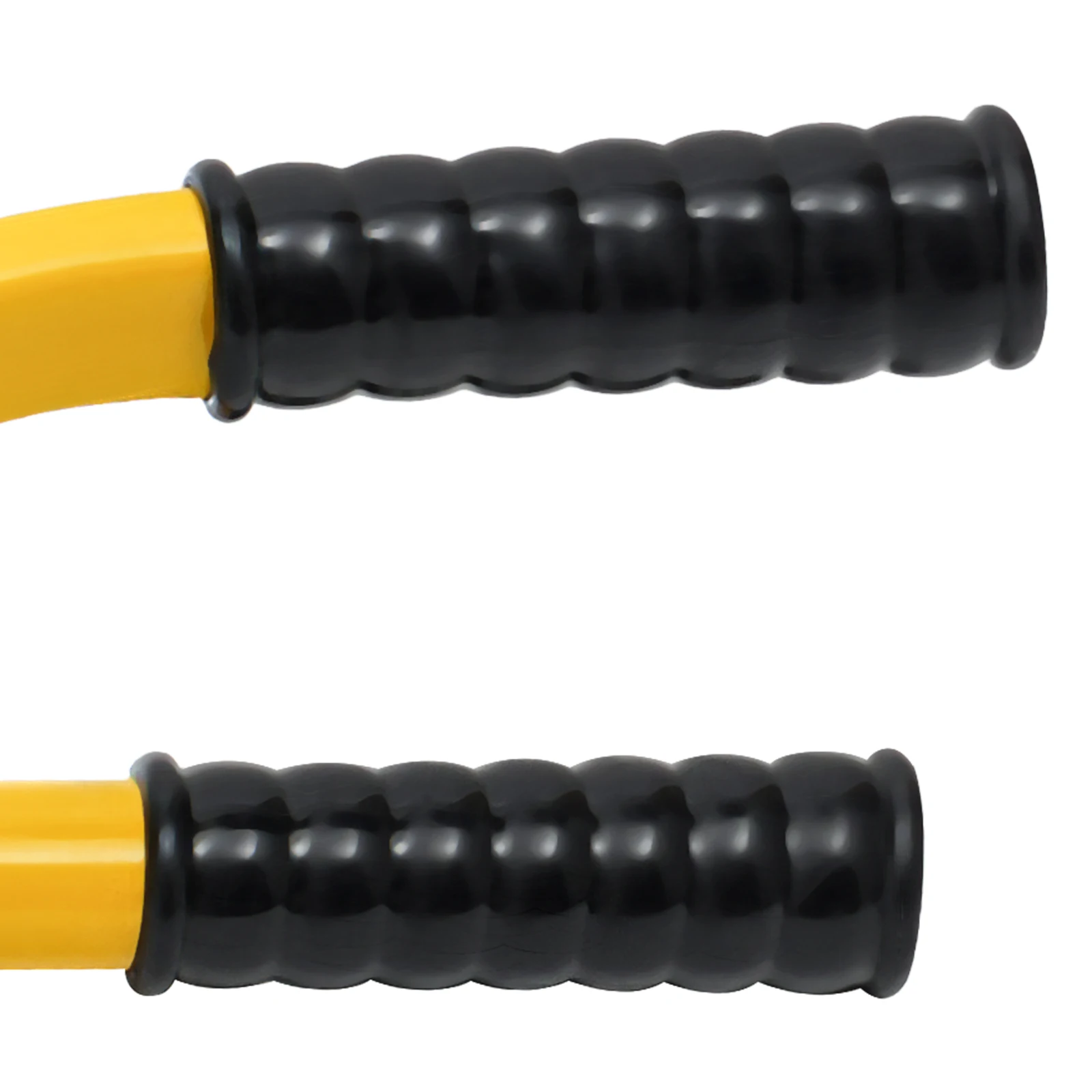

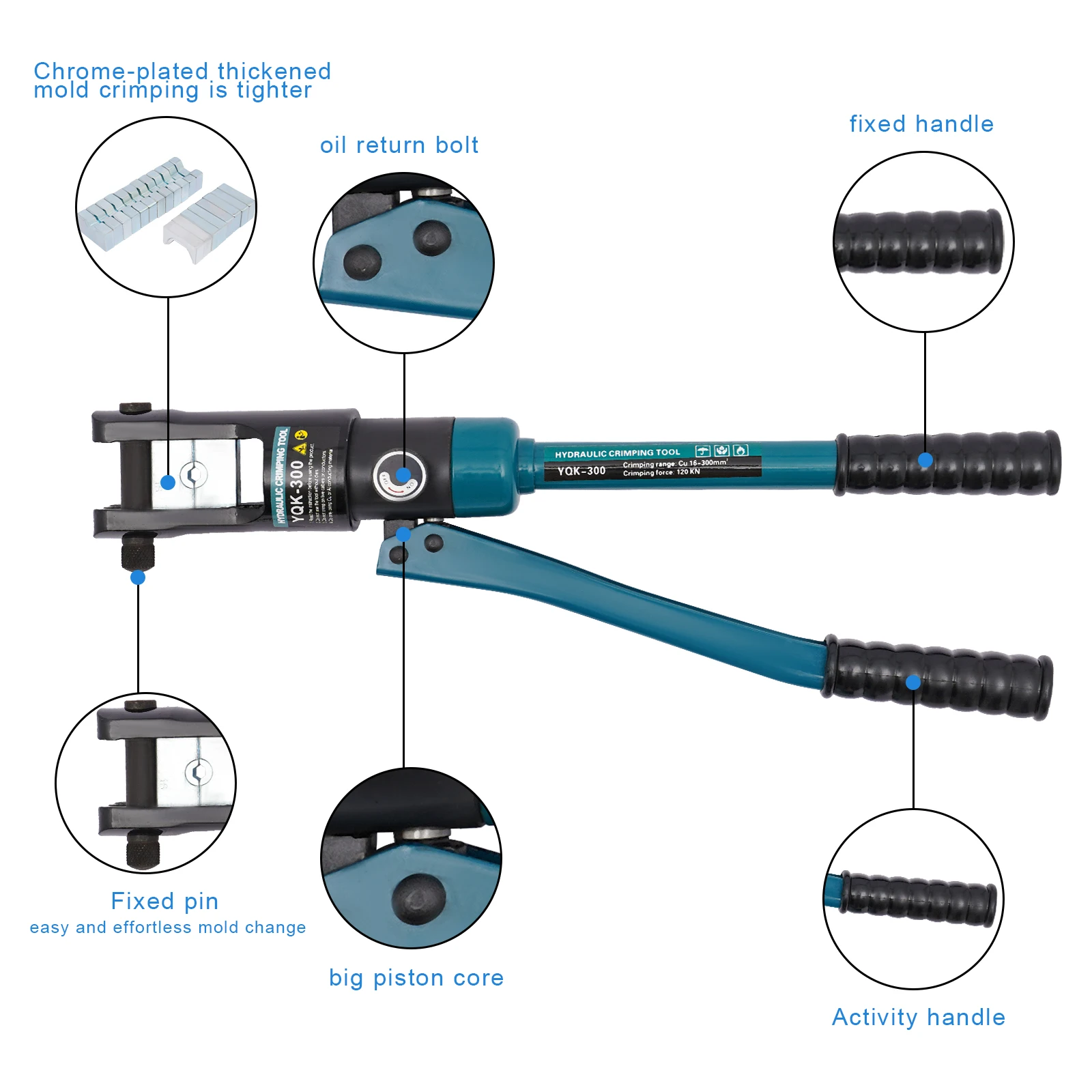

Ergonomic Handles: The rubber handles are designed with an ergonomic wave pattern for a comfortable grip and less effort.

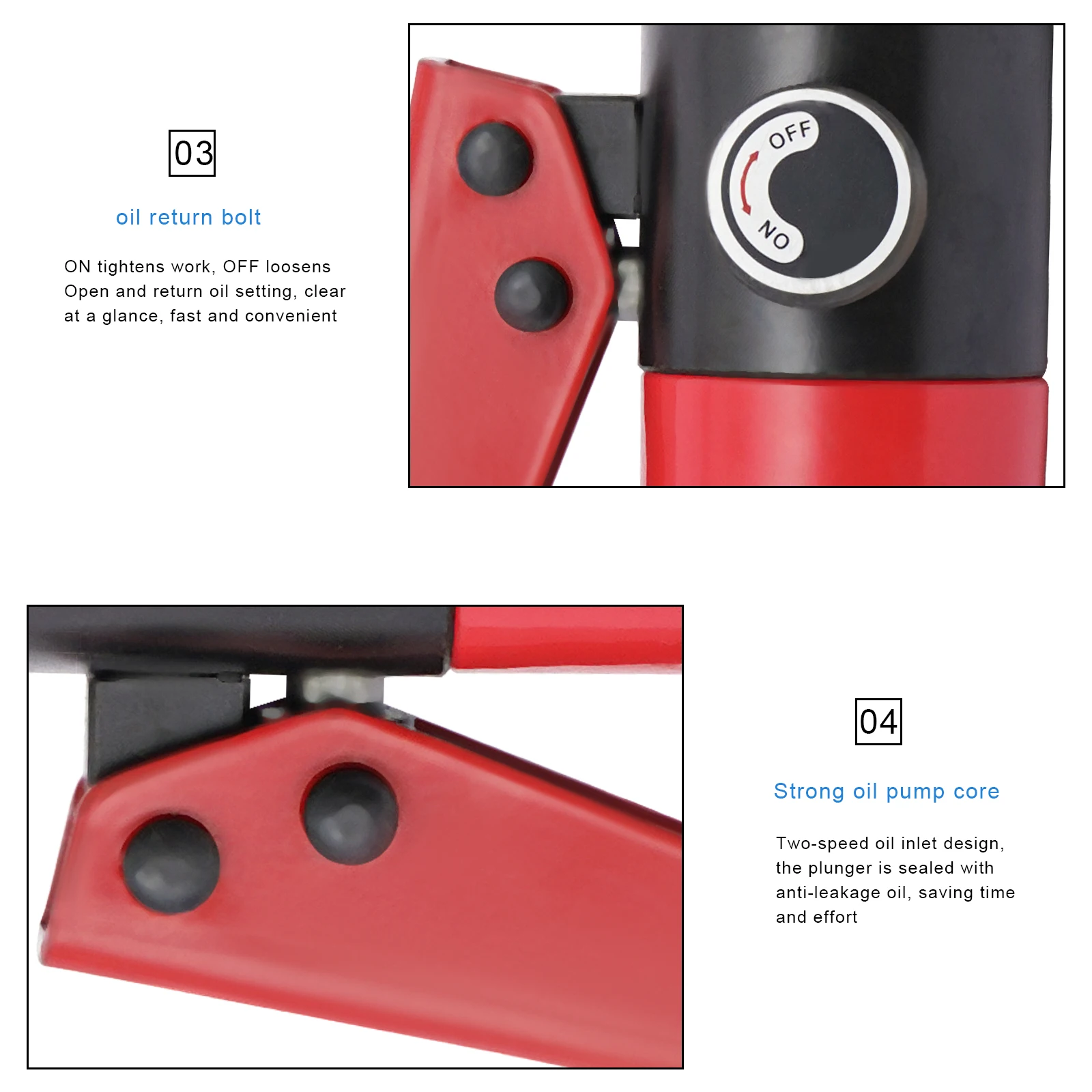

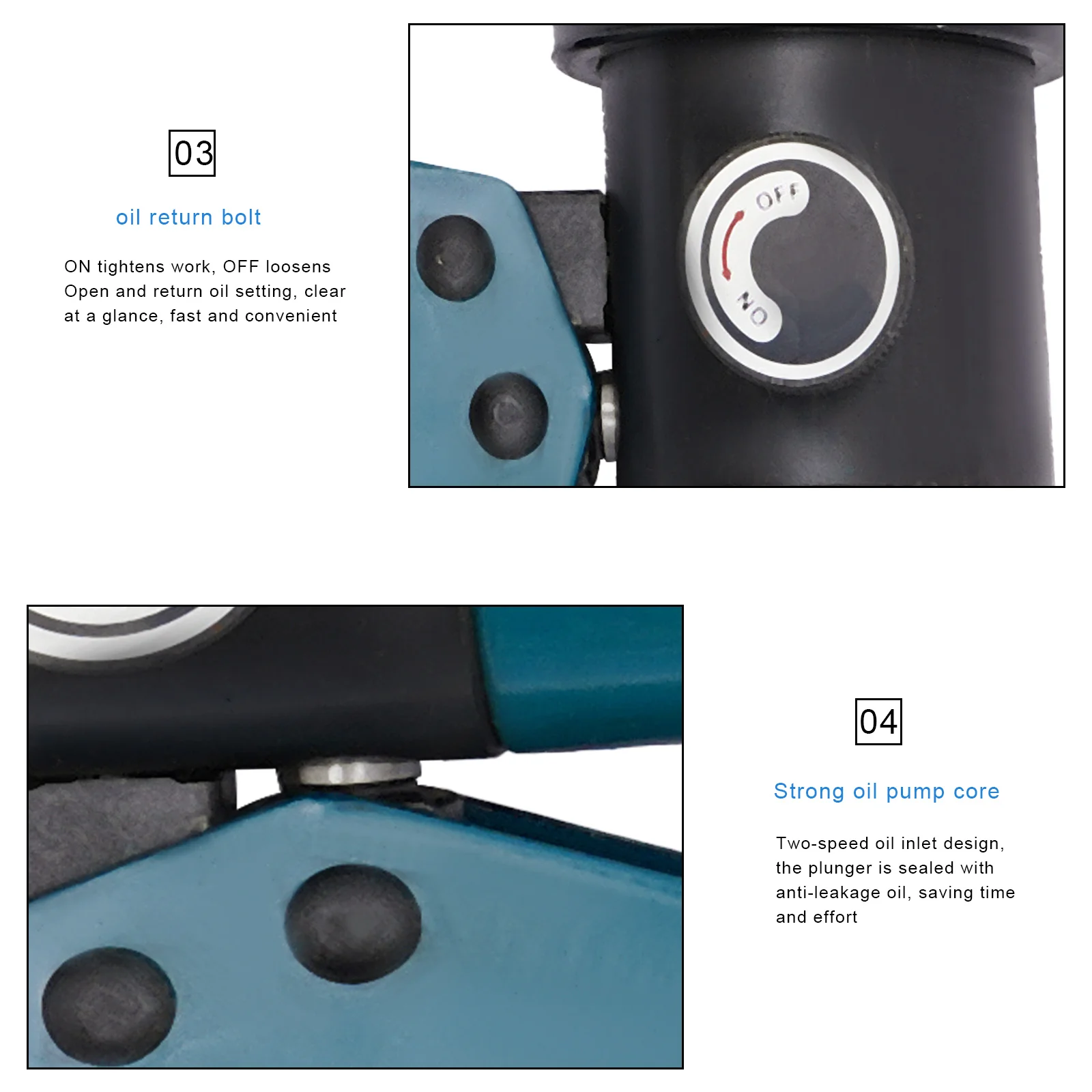

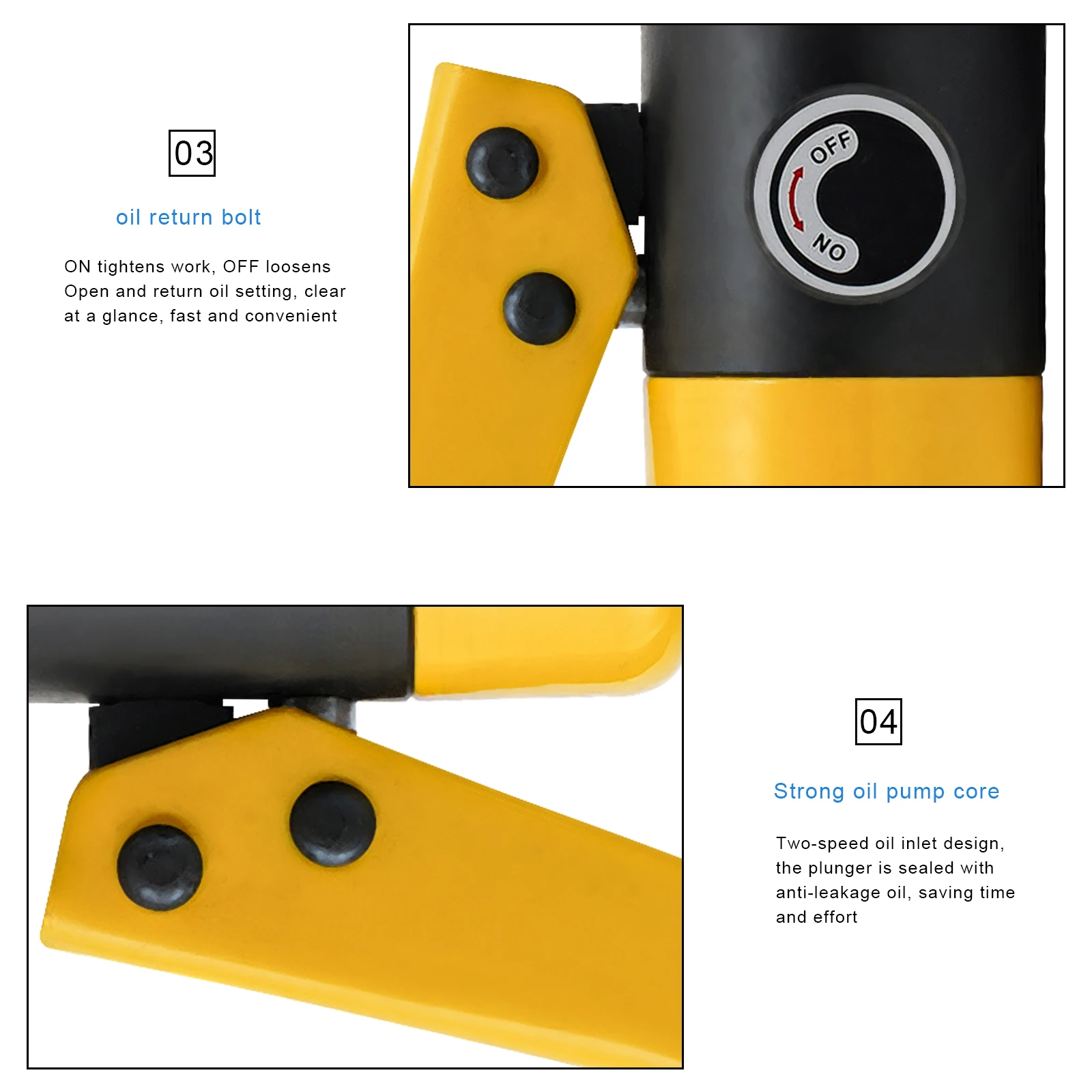

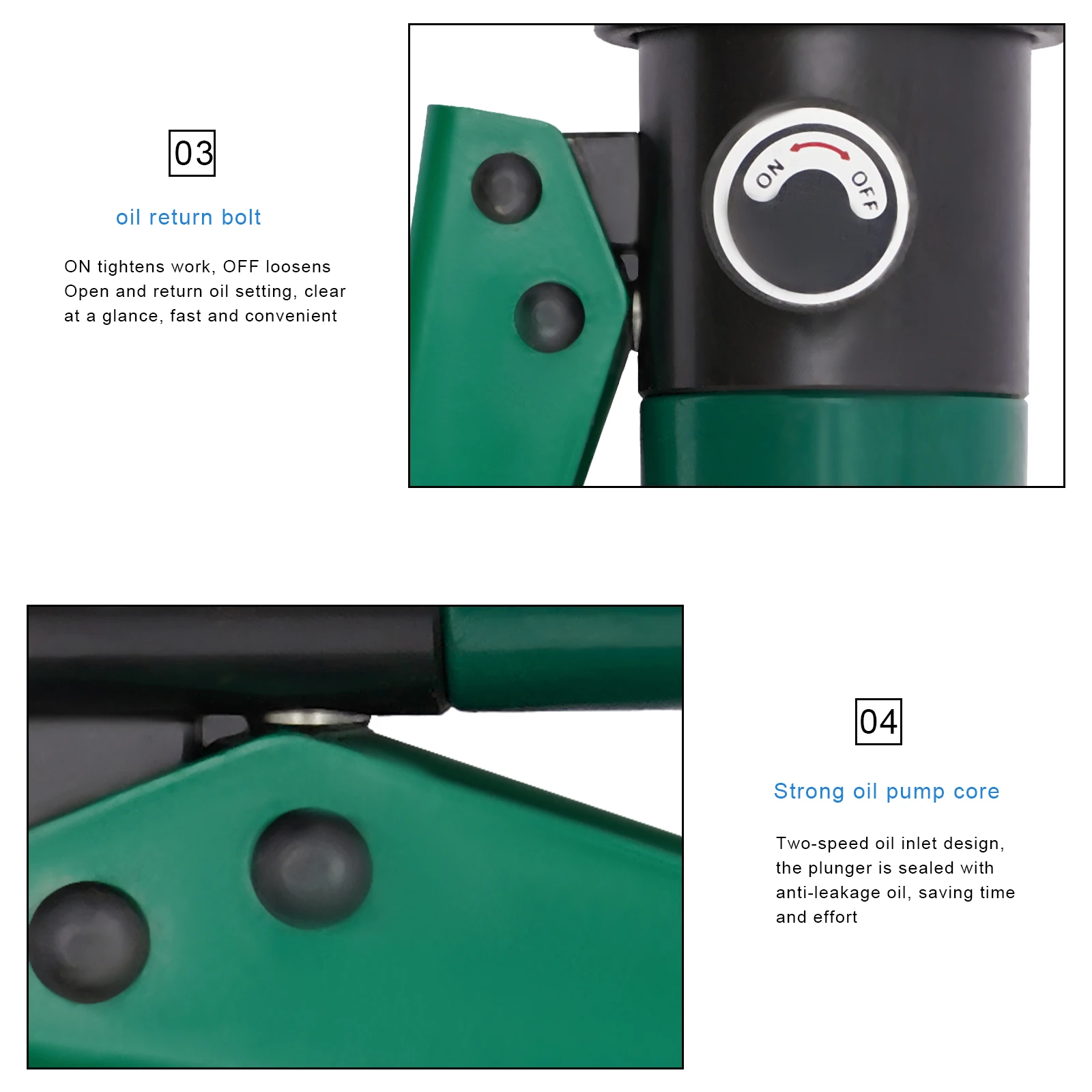

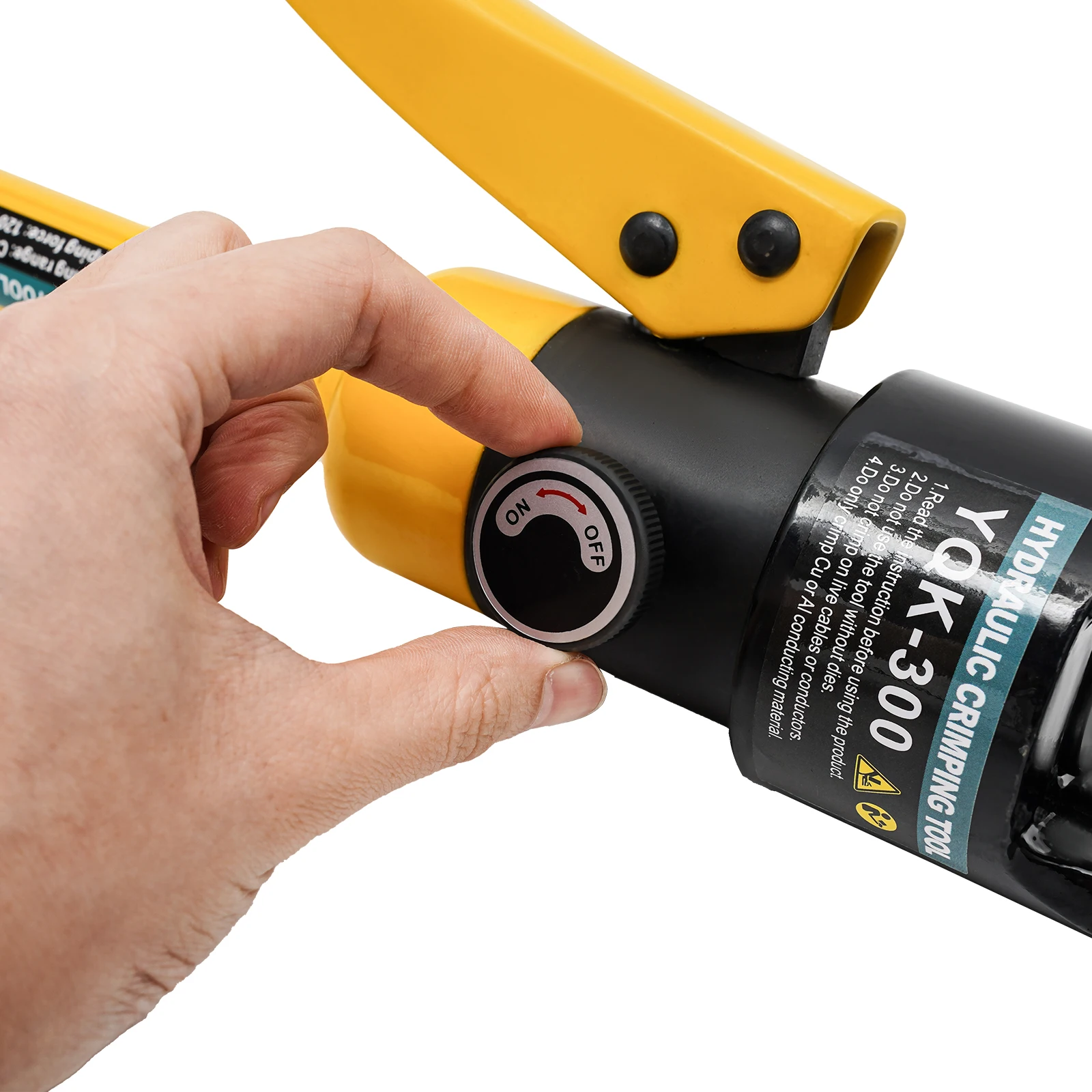

Oil Return Bolt: It is very convenient to tighten "ON" to start working and loosen "OFF" to open the oil return setting!

Strong Oil Pump Core: Two-speed oil feeding design saves time and effort.

Application

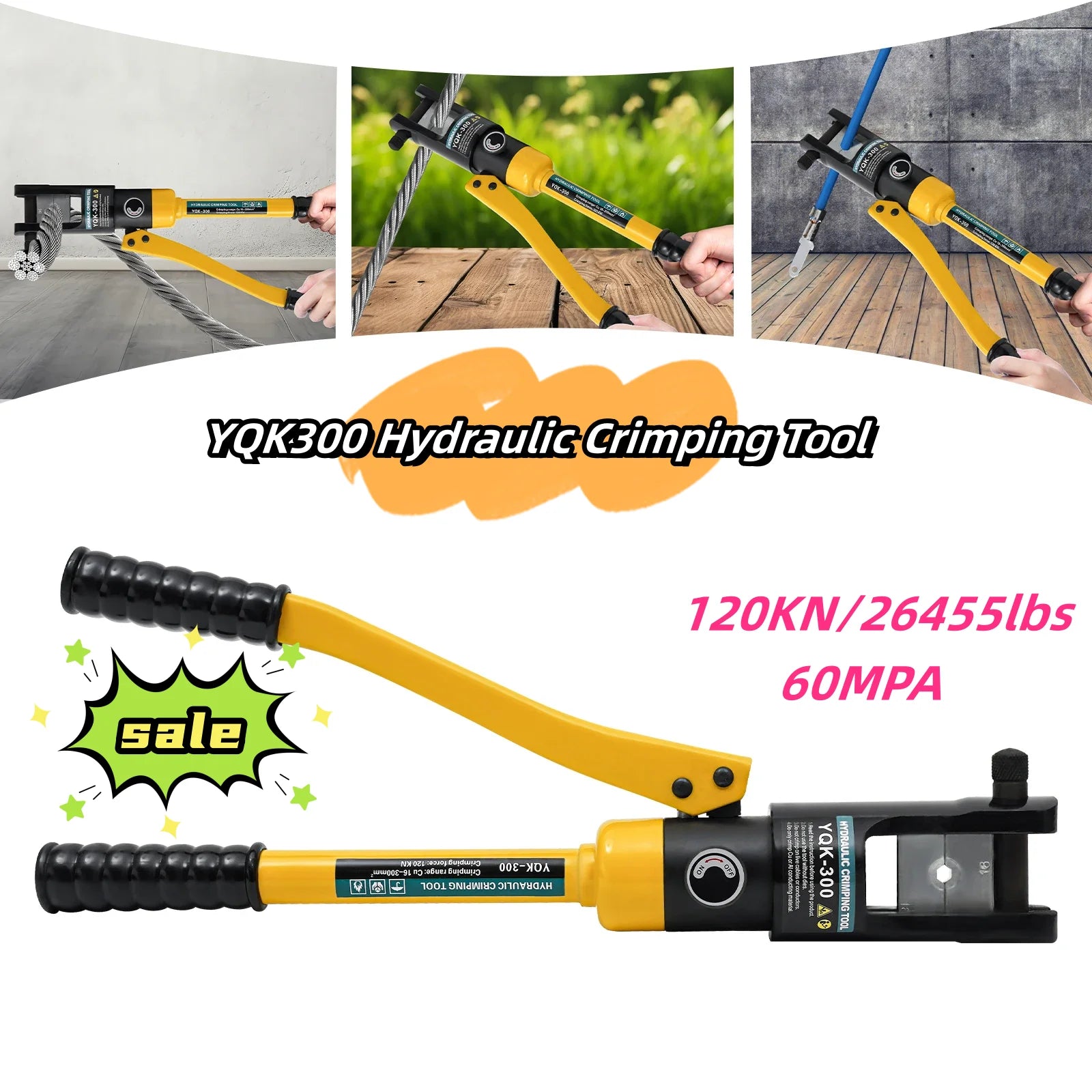

It is widely used for do-it-yourself projects, electrical emergency repairs, electrical cabinet boxes, copper and aluminum terminal crimping, railings, flooring, fencing, motor and aircraft cables, bicycle brakes, and motorcycle cables. It is suitable for battery and soldering cables, power cords, wires, and other copper or AI conductive materials. It can crimp aluminum ferrules, copper ferrules, stainless steel ferrules, aluminum end plugs, and copper end plugs in sizes from 0.118-0.394-inch, and stainless steel crimp terminal fittings in sizes 0.157-0.197-inch.

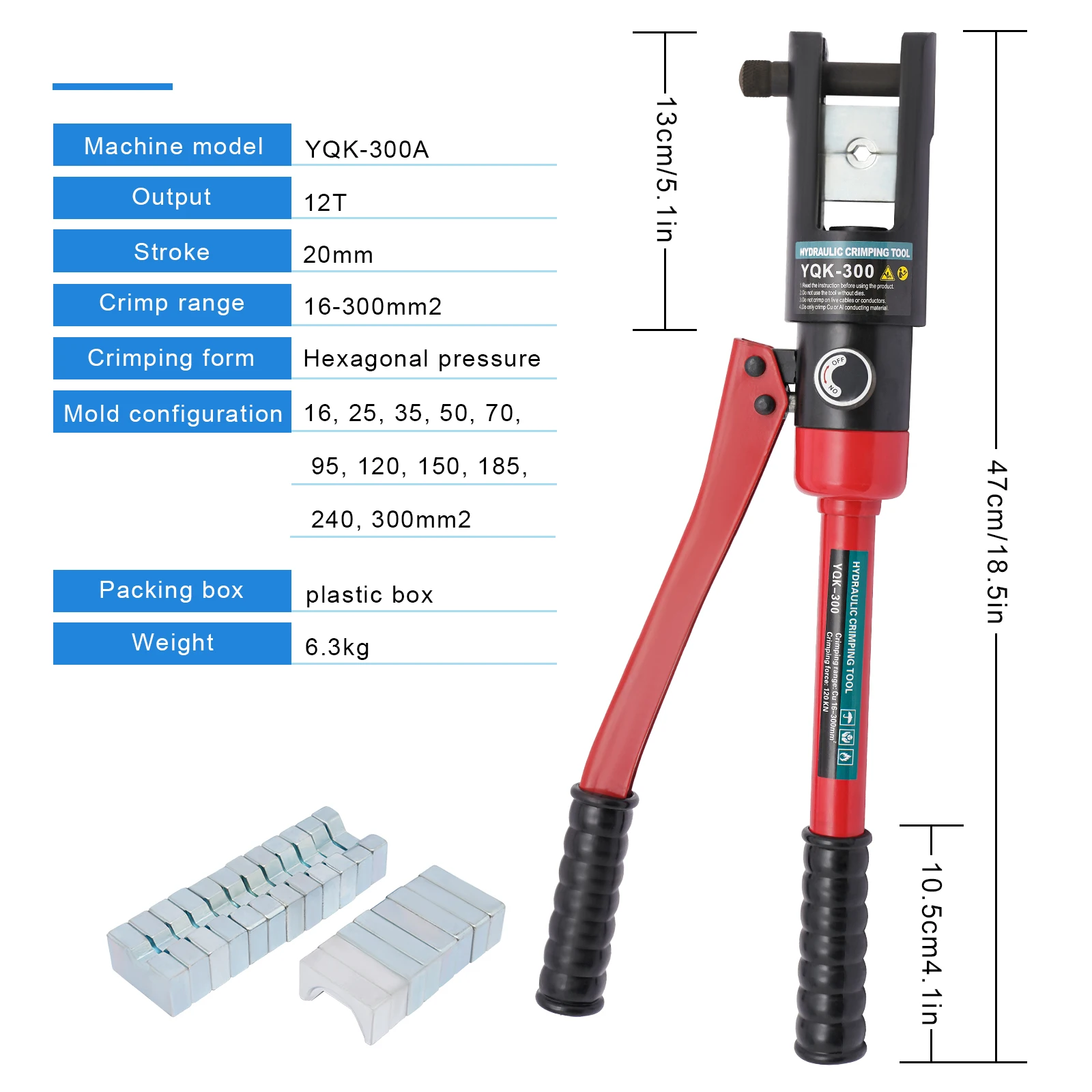

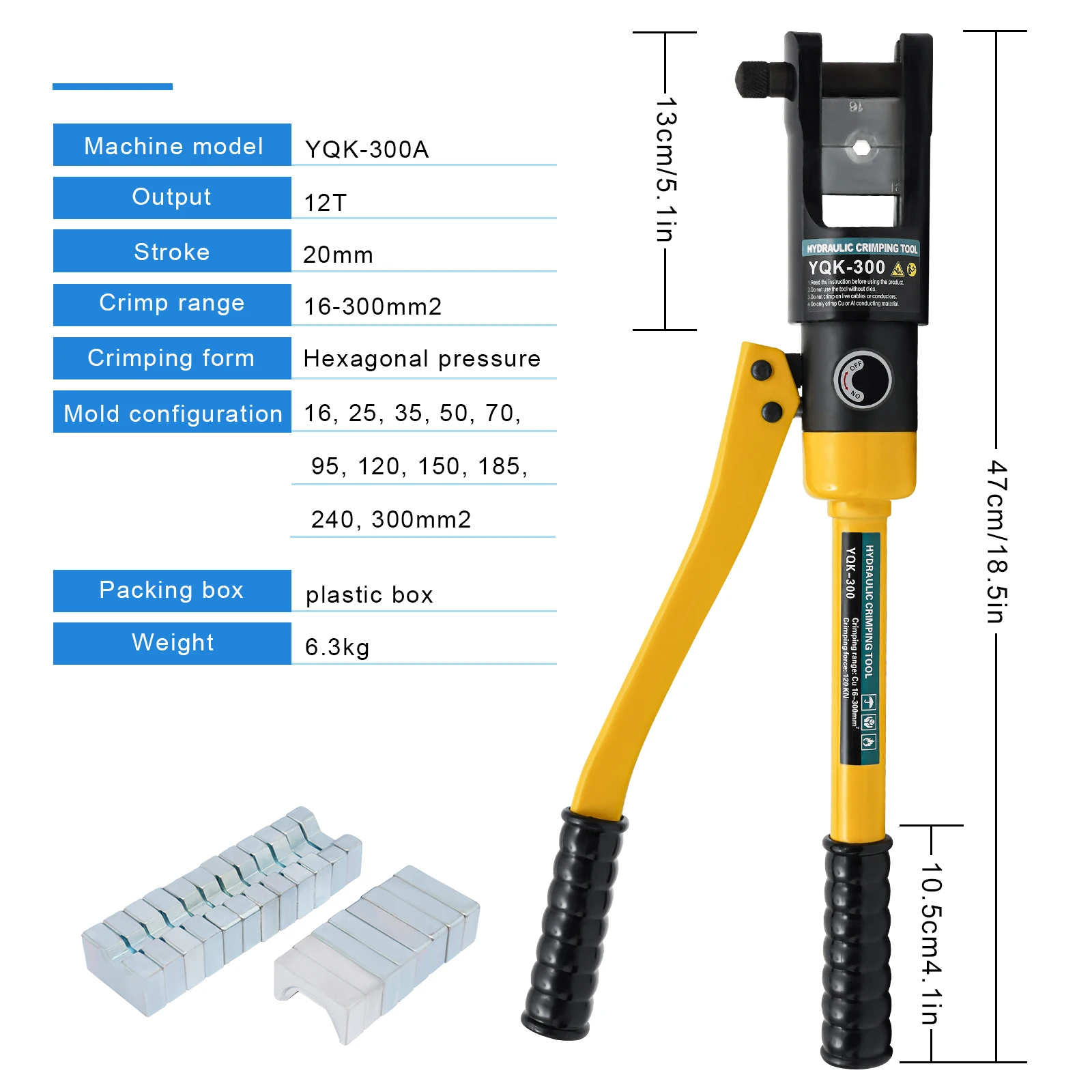

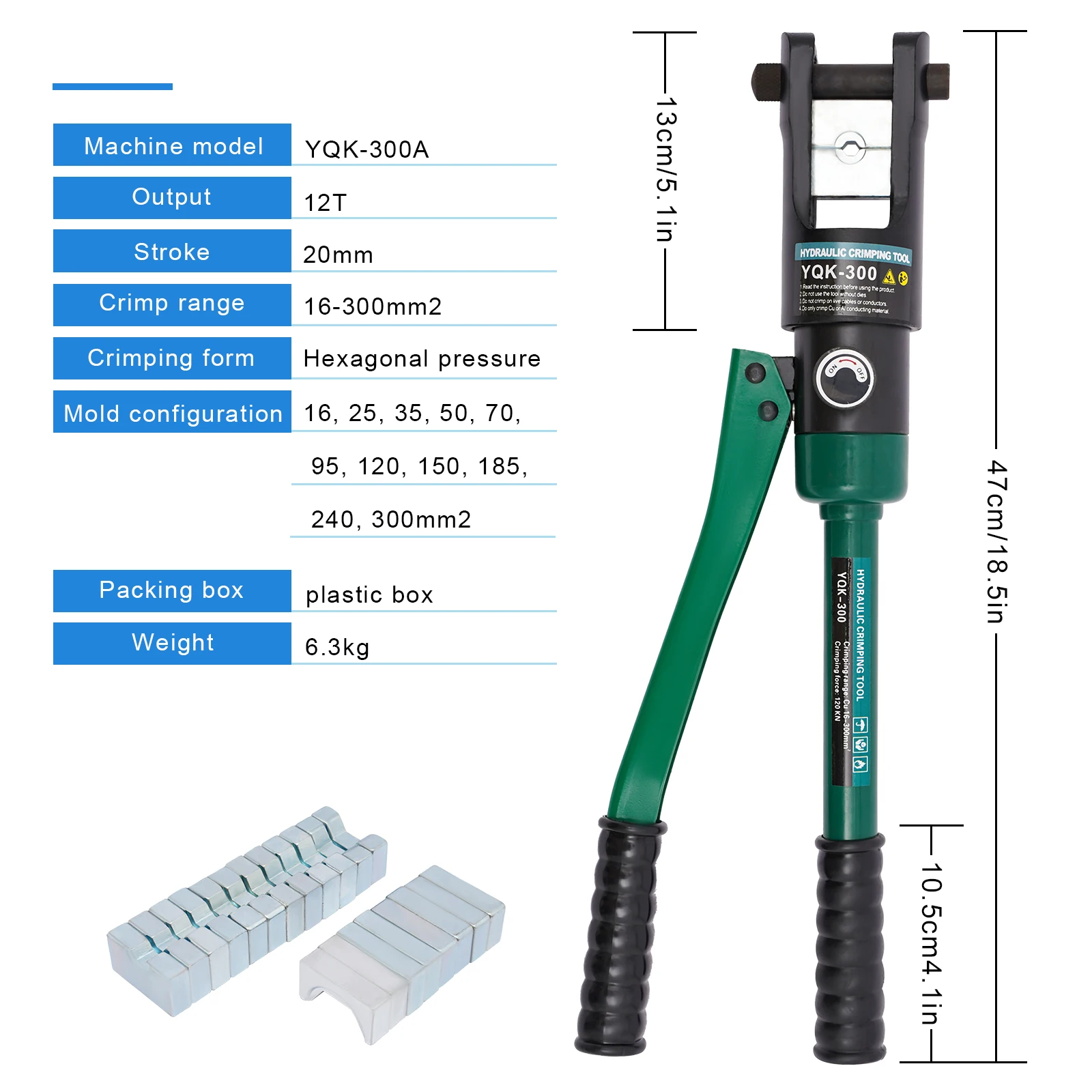

Specification

Model: YQK-300

Color: Yellow/green/red/blue

Product Type: Hydraulic Crimper

Material: CR45 Steel, Rubber

Process: Heat Treatment, Blackening Treatment, Plastic Spraying

Crimp Form: Hexagonal Surrounding Crimp

Operation Type: Manual

Number of Pieces: 1

Mounting Type: Freestanding

Pressure: 60MPA

Crimping Range: Cu 16-300m㎡/0.014-0.27sq.in

Crimping Force: 120KN/26455lbs

Mold Configuration: 16/25/35/50/70/95/120/150/185/240/300m㎡/0.0144/0.0225/0.0315/0.045/0.063/0.0855/0.108/0.135/0.1665/0.216/0.267sq. in

Stroke: 20mm/0.787inch

Package Size: 50*17*9.5cm/19.6*6.6*3.7inch

Gross Weight: 5.9kg/13lb

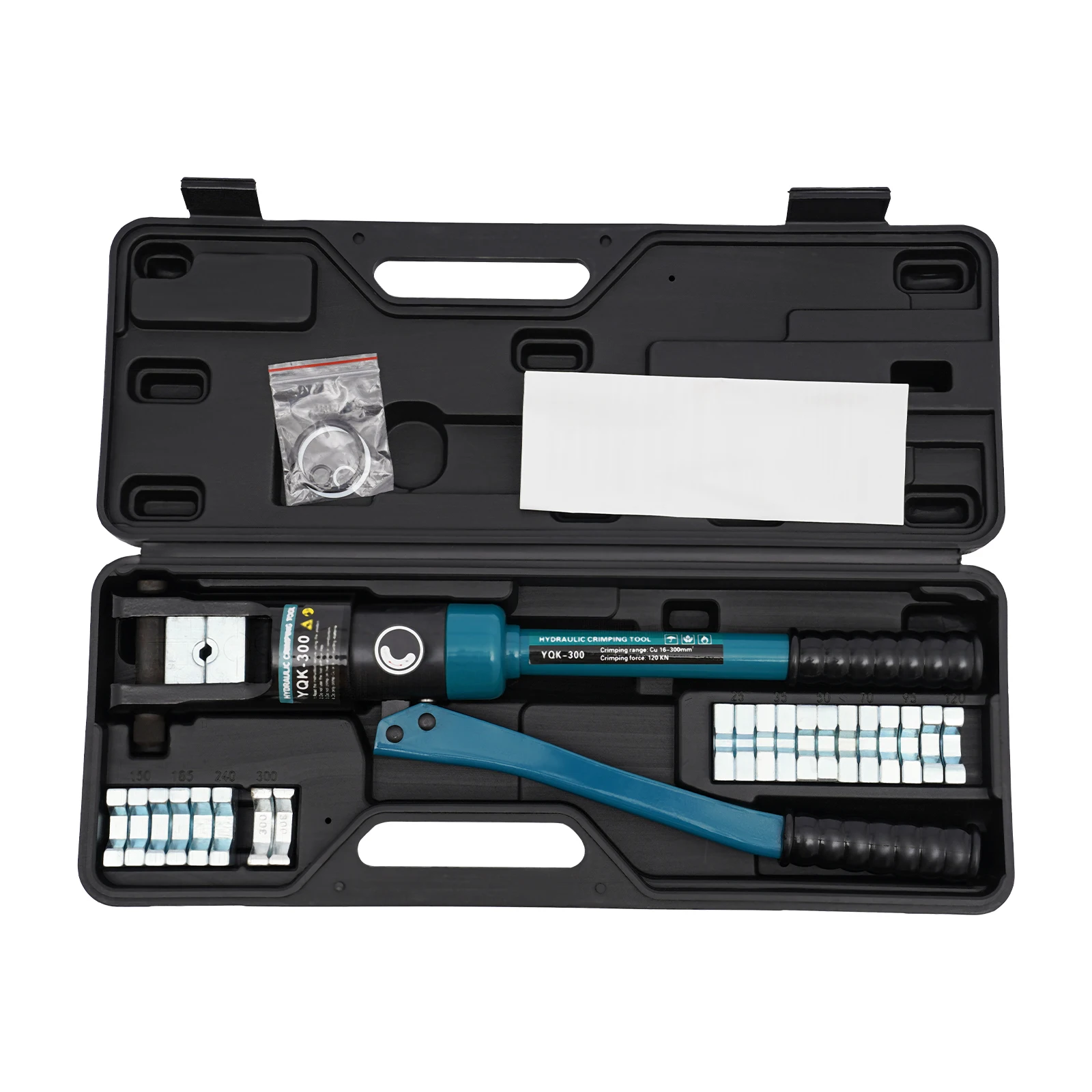

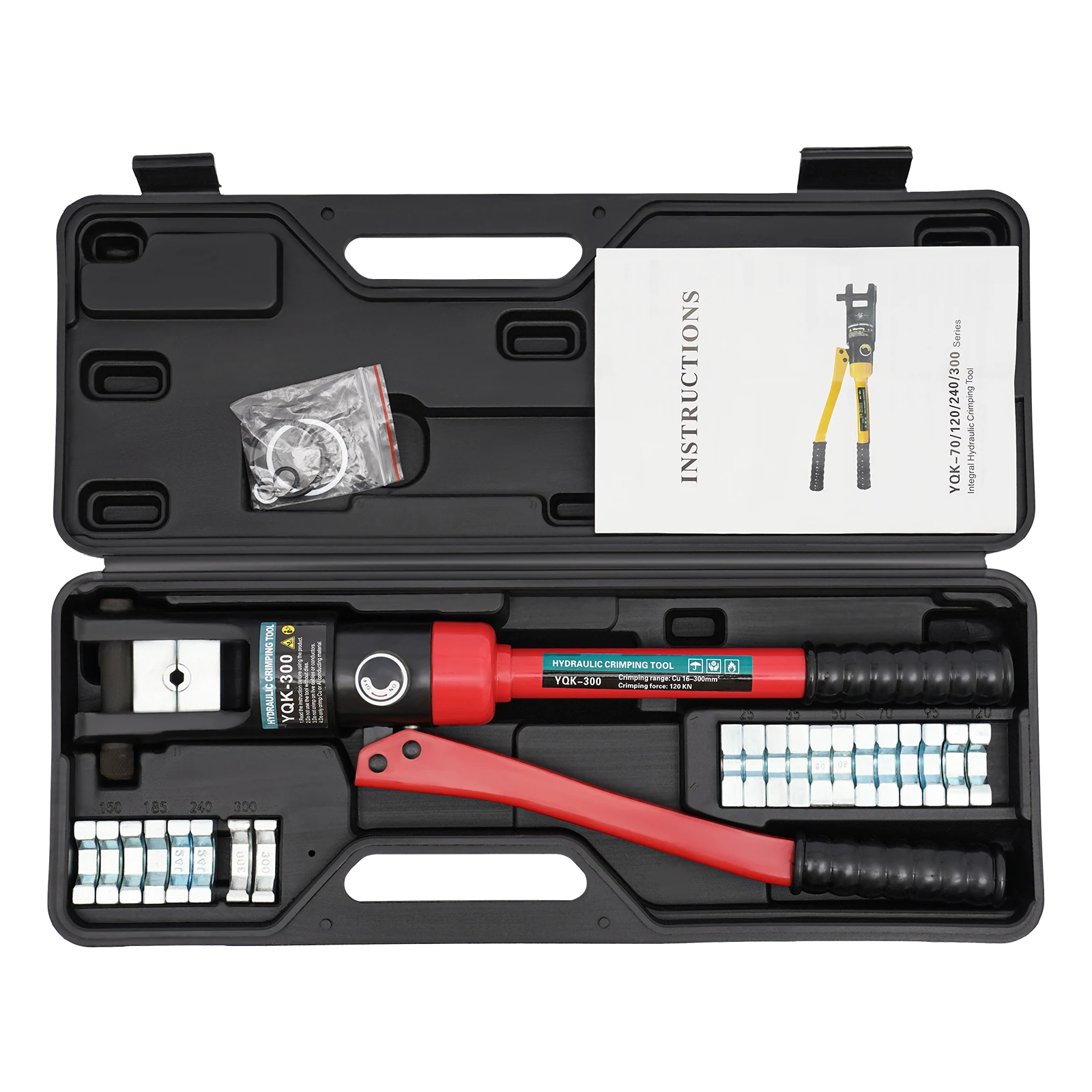

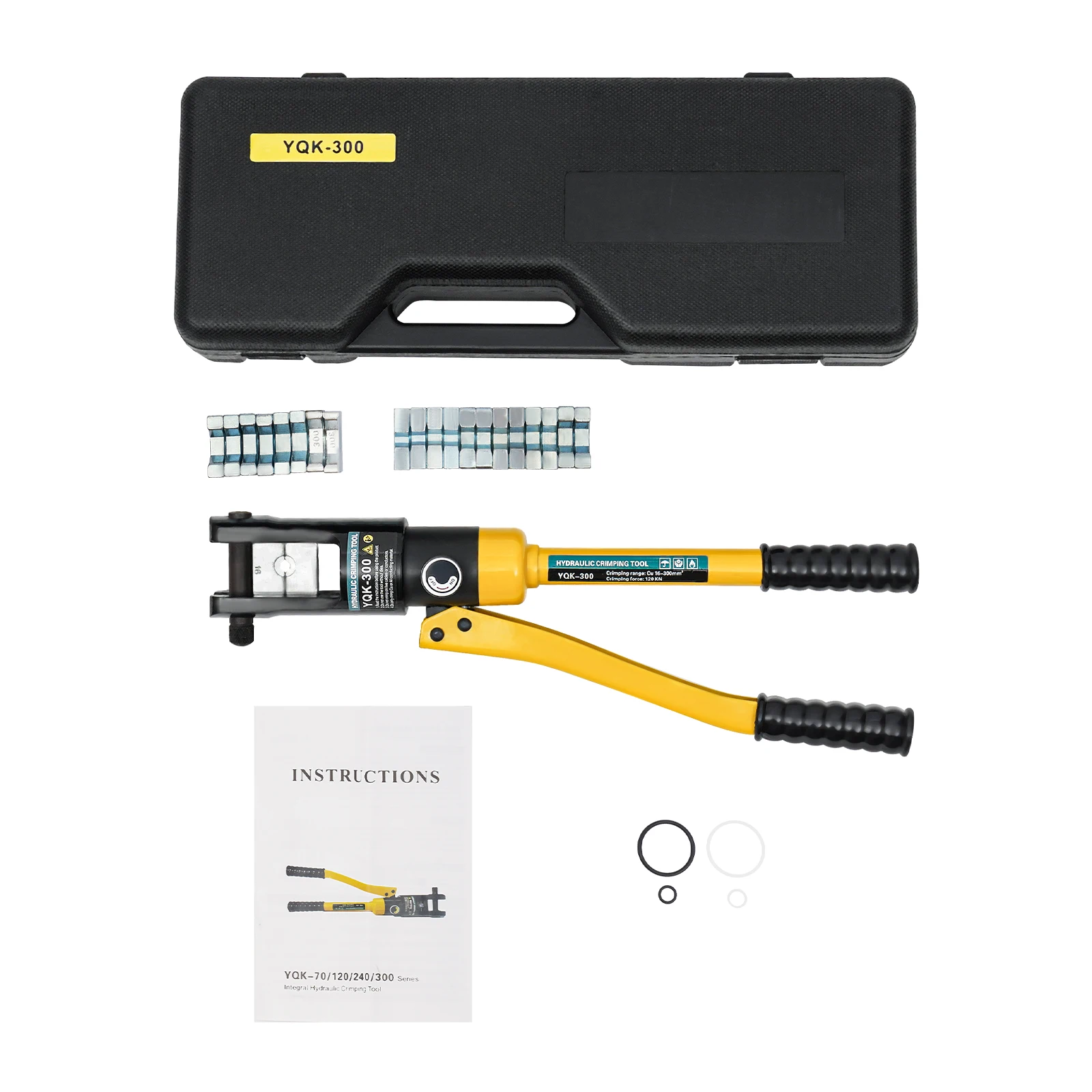

Package Included

1* Hydraulic Crimper

11 Sets* Dies(One is Installed)

1* Storage Case

4* Seal Rings

1* English Instruction

Notes

1. Please read the instruction carefully before using the product and pay special attention to the safety matters therein.

2. Please note that this product does not have a safety valve, so constant pressure will result in overpressure.

3. Please do not use the tool without dies.

4. Please do not crimp on live cables or conductors.

5. Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
